The KangaTrak system is designed as an on-ground and elevated structure using a variety of footings and foundations.
-

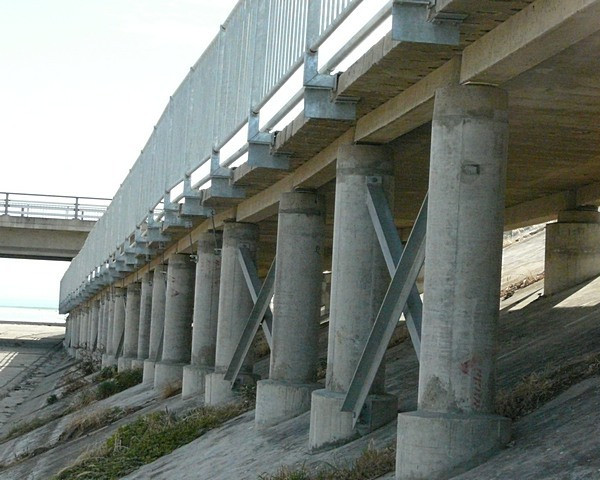

Caissons with steel bracing. -

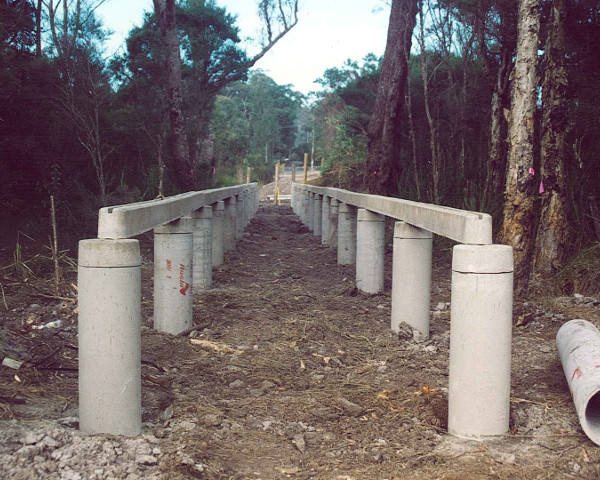

Elevated boardwalks installed onto potted concrete pipes/
The KangaTrak precast concrete piers consists of a pier-base, a pier riser and a pier cap. Piers are installed onto a compacted base.
Where heights are greater than 1 metre the pier cap can be installed onto potted concrete pipes (i.e. backfilled with concrete) for elevated boardwalks.
-
Precast abutment, piers, beams and treads. -

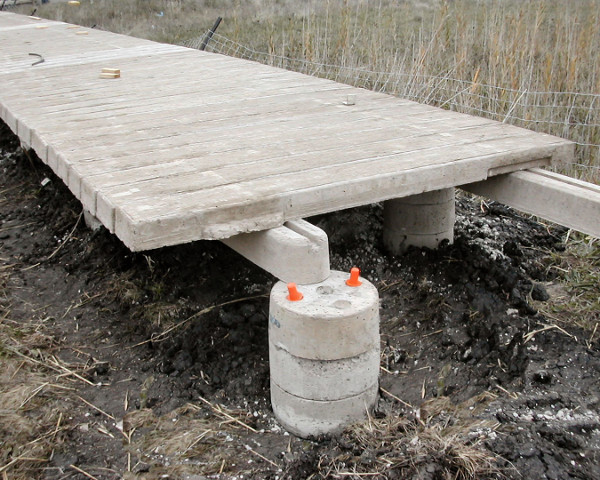

Precast piers, beams and treads.
Steel substructures can have the KangaTrak precast tread decking fixed onto them.
-

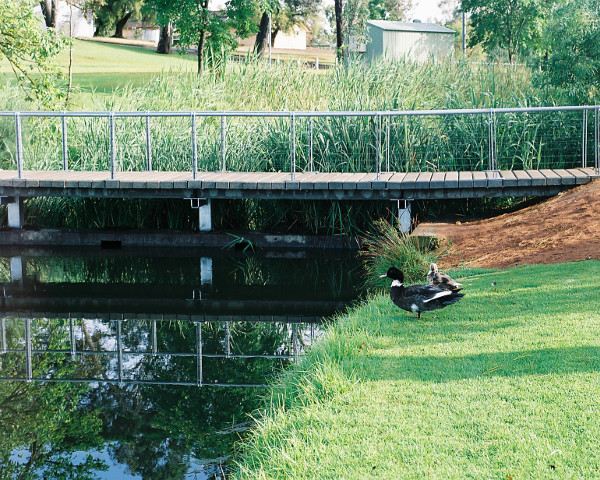

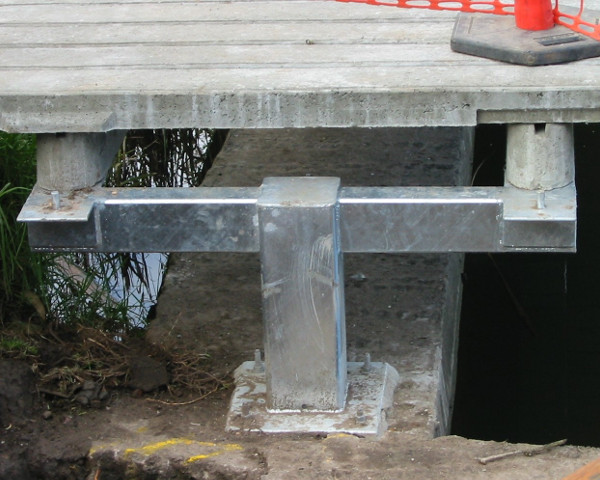

Steel substructure. -
Steel substructure.
Marine piles of various materials (steel, concrete,hardwood timber) suit coastal sites. Fixtures need to be engineered to suit wave uplift forces.
Screw piles suit wetland and sand dune sites. KangaTrak precast abutments provide an efficient way to link with adjacent pavements.
-

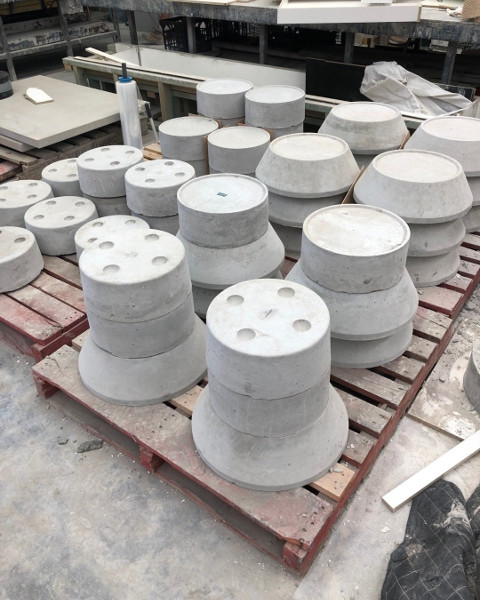

Precast piers ready for transport. -

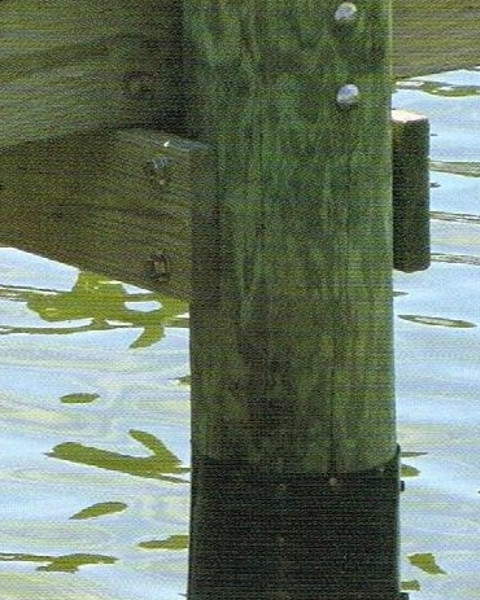

Timber pile -

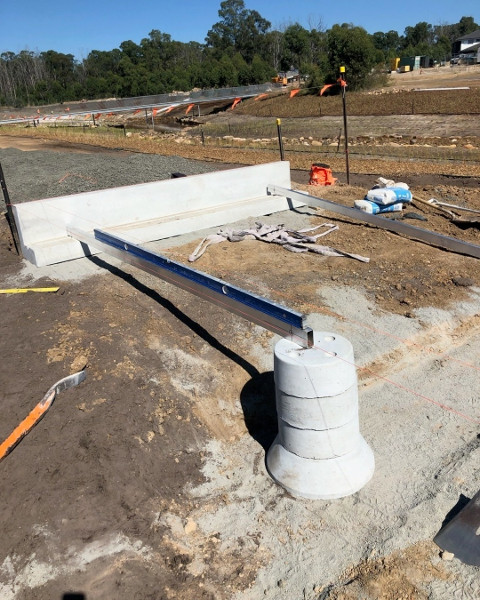

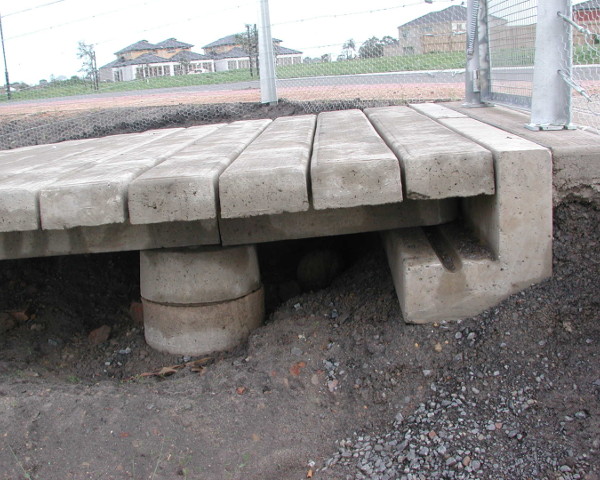

Precast abutment and piers placed onto a compacted base. -

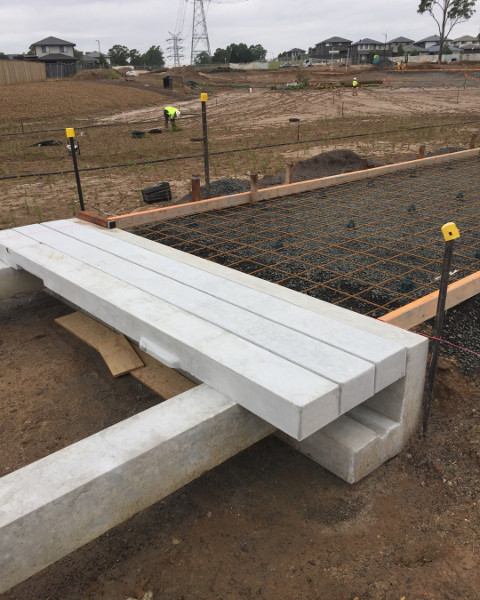

Abutments provide an efficient link with adjacent pavements.
